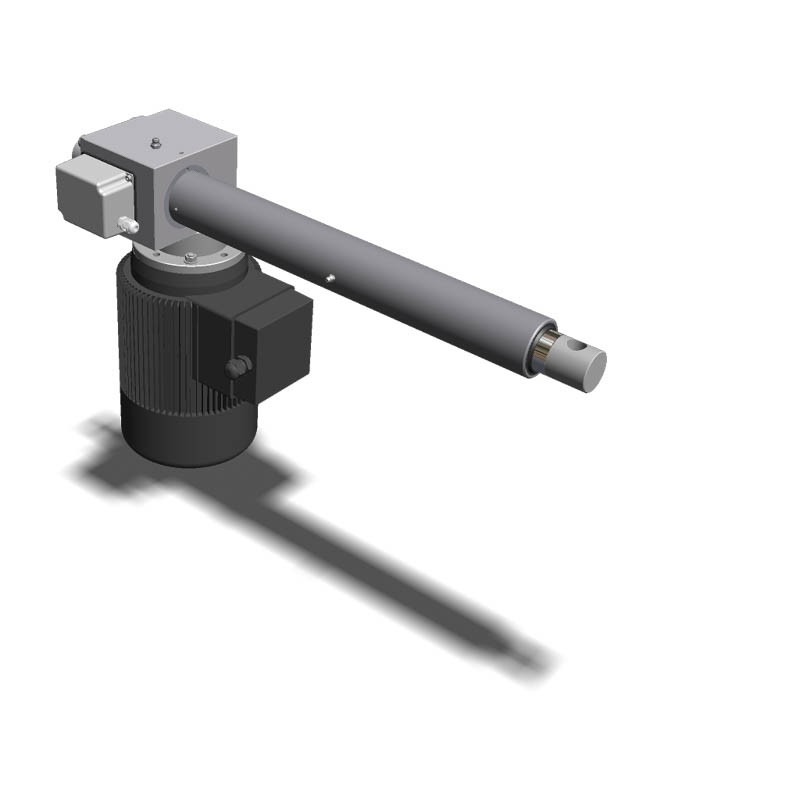

AV3 Max Force 25000 N Max Speed 55 mm/s Motor 1ph-3ph
£0.00
AV3 Max Force 25000 N Max Speed 55 mm/s Motor 1ph-3ph
AC Linear Actuator Features:
• Max force: 25 kN
• Max speed: 55 mm/s
• Stroke up to: 1100 mm
• Motor: 1ph-3ph Vac A.C. motor, flange B14 – CE
• Worm gearbox
• Acme lead screw or ballscrew (VRS)
• Chrome plated steel push rod
• Grease Lubricated
• IP 50 / IP 65
• Working temperature range -10°C +60°C
• Intermittent duty S3 30% (5 min) a 30°C(*)
• Limit switches
• Potentiometer and encoder on request
- Description
-
Details
AC Linear Actuator Features: • Max force: 25 kN • Max speed: 55 mm/s • Stroke up to: 1100 mm • Motor: 1ph-3ph Vac A.C. motor, flange B14 – CE • Worm gearbox • Acme lead screw or ballscrew (VRS) • Chrome plated steel push rod • Grease Lubricated • IP 50 / IP 65 • Working temperature range -10°C +60°C • Intermittent duty S3 30% (5 min) a 30°C(*) • Limit switches • Potentiometer and encoder on request - Technical Specifications
-
Additional Information
- Data Sheets
-
